The integrity of TDC (Transverse Duct Connector) corners is crucial in HVAC ductwork. A small oversight during installation can lead to air leaks, increased energy costs, and compromised system performance. Here's how to ensure corners are installed correctly and maintain their effectiveness over time.

What Are TDC Corners?

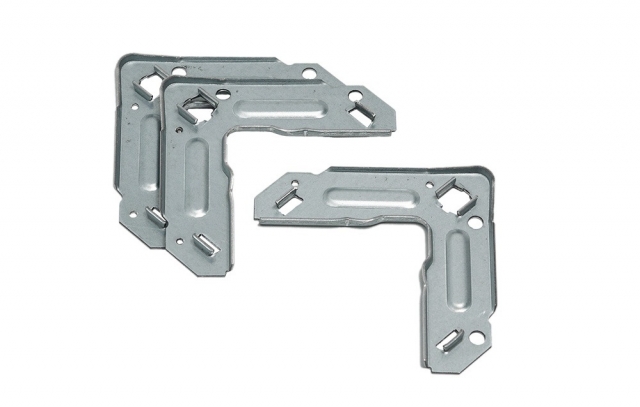

TDC corners are essential components in rectangular duct systems. They facilitate the connection between duct sections, ensuring a secure and airtight seal. Typically made from galvanized steel, these corners are designed to withstand the rigors of HVAC systems.

Pre-Installation Inspection: Setting the Stage

Before installation, inspecting the TDC corners for any defects or damage is vital. Here's a checklist to guide you:

  • Visual Inspection: Ensure the corners are free from dents, rust, or deformities.
  • Dimensions Check: Verify that the corners match the required specifications for your duct system.
  • Cleanliness: Ensure no sharp edges or debris could hinder proper sealing.

Installation Best Practices: Ensuring a Secure Fit

Proper installation of TDC corners is paramount for system efficiency. Follow these steps:

  1. Align Corners Correctly: Ensure the corners fit snugly into the duct flanges.
  2. Secure with Appropriate Fasteners: Use the recommended bolts or screws to attach the corners firmly.
  3. Apply Sealant: A suitable sealant covers the corner seams, preventing potential air leaks.

Post-Installation Inspection: Verifying the Seal

After installation, conduct a thorough inspection:

  • Check for Gaps: Ensure no visible gaps between the corner and the duct flange.
  • Tightness Test: Gently tap around the corner to check for loose areas.
  • Seal Integrity: Inspect the applied sealant for any signs of cracking or peeling.

Common Pitfalls to Avoid

Even experienced technicians can encounter challenges. Be wary of:

  • Over-tightening can deform the corner or duct flange, leading to misalignment.
  • Under-tightening: Insufficient fastening can result in loose connections and potential air leaks.
  • Incorrect Sealant Application: Using the wrong type or insufficient amount of sealant can compromise the airtight seal.

Real-World Insights

From industry forums and community discussions, professionals emphasize the importance of meticulous inspection:

  • "I always double-check the TDC corners before sealing. A small oversight can lead to significant energy losses." – HVAC Technician on Reddit.
  • "Using the right tools makes a world of difference. A proper corner crimping tool ensures a tight fit every time." – HVAC Professional on HVAC-Talk Forum.

Conclusion

Ensuring the proper installation and maintenance of TDC corners is vital for the efficiency and longevity of HVAC systems. Adhering to these inspection and installation practices can prevent common issues and ensure optimal system performance.

The installation instructions provide more detailed guidelines and specifications on TDC corners. Always prioritize quality and precision in every installation step.
